Two Main Module Types:

CM416 module

• 16 channel strips
• width 22.3" (566mm)
• CM416HL module - 8 strips, left half blank
• CM416HR module - 8 strips, right half blank

CM404 module

• SuperChannel, master facilities, touchscreen and 8 wild faders
• width 22.3" (566mm)

Modules connect to DSP core via ethernet.

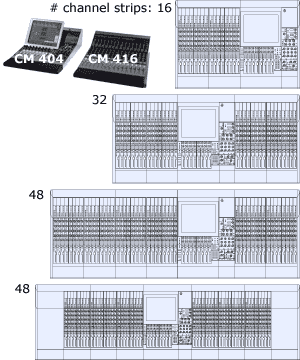

4 Control Surface Combinations

(other combinations are possible):
(shown opposite - top to bottom, modules may be placed in any order)

Surface 1 - 16 channel strips - *width 48.6" (1,234.5mm)
Surface 2 - 32 channel strips - *width 72.9" (1,851.7mm)
Surface 3 - 48 channel strips - *width 97.2" (2,468.9mm)
Surface 4 - 48 channel strips with blanks - *width 121.5" (3,086.1mm)

* All widths include 1" per side for end caps. Subtract 2" (50.8mm) for system without end caps.
