7-Band EQ III High Shelf/High Peak
The High Shelf/Peak band is switchable between high shelf EQ and high peak EQ functions. By default, this band is set to High Shelf.
• High Shelf EQ
Boosts or cuts frequencies at and above the Frequency setting. The amount of boost or cut is determined by the Gain setting. The Q setting determines the shape of the shelving curve.
• High Peak EQ
Boosts or cuts a band of frequencies centered around the Frequency setting. The width of the affected band is determined by the Q setting.

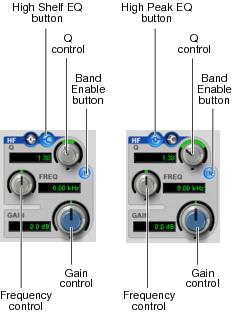

High Shelf EQ (left) and High Peak EQ (right)
The High Shelf and High Peak Gain controls and their corresponding graph elements are displayed on-screen in blue. The following control values are available:
Control | Value |
Frequency Range | 1.8 kHz to 20 kHz |
Frequency Default | 6 kHz |
High Shelf Q Range | 0.1 to 2.0 |
High Peak Q Range | 0.1 to 10.0 |
Q Default | 1.0 |
High Shelf Gain Range | –12 dB to +12 dB |
High Peak Gain Range | –18 dB to +18 dB |
