Control Surface Displays

System 5 screens are all high resolution SVGA TFT Displays

Center Section Screens
The two screens that are situated above the center section show infomation relating to master facilities.

Left Hand Screen - Central Assign - CM402T Sub-Master Module.
Right Hand Screen - Master Facilities - CM401T Master Module - Showing Automation tree to the right

Meter Presets

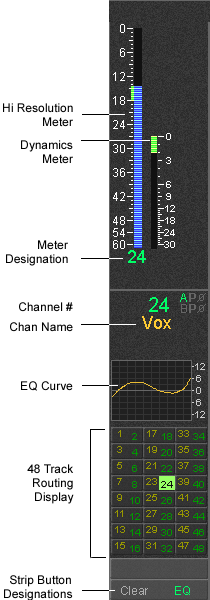

Another very useful feature is meter presets. These allow the setup of all the Strip meters to be stored and named for later recall. For example, a meter setup comprising just single meters for whatever channels are assigned to the strips, or another which includes dual meters for channel signals and group signals. Another useful preset would be to show all Aux buses, another for just group signals. The Strip meters can show any combinations of channel signals, aux, group and mix buses. els.
